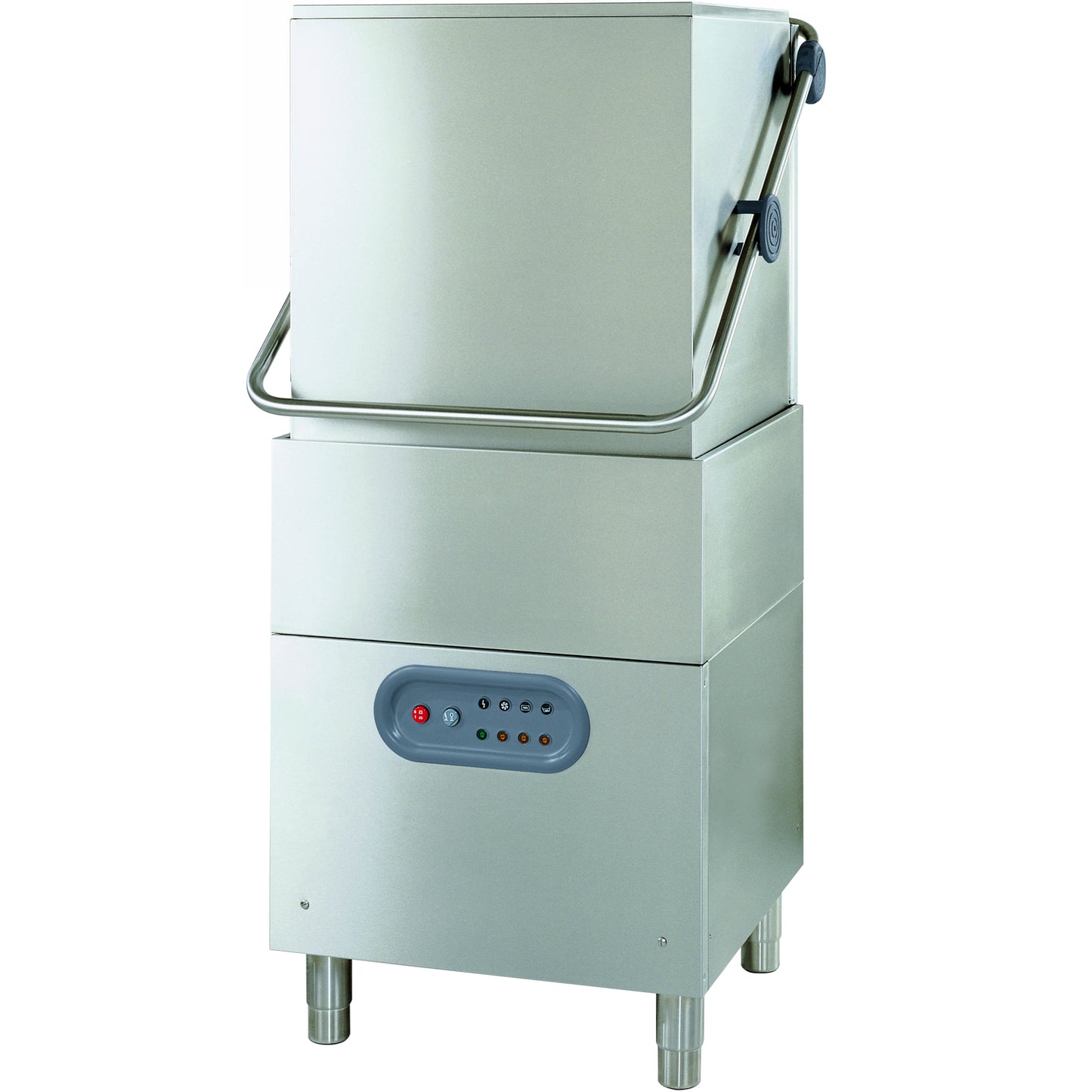

Pass through dishwasher Premium Rinse aid pump Detergent pump 230V - 61BDD230
When high-volume service demands efficiency and reliability, busy commercial kitchens in London, Manchester, and Birmingham turn to My Globel for top-tier catering equipment like the Pass through dishwasher Premium Rinse aid pump Detergent pump 230V - 61BDD230. Designed to meet the rigorous standards of the food service industry, this industrial dishwashing machine handles up to 40 racks per hour, making it an ideal hood-type solution for hotels, restaurants, bars, pubs, and hospitals.
Available through My Globel, this machine comes backed by a 12 mth spare parts warranty for added peace of mind during heavy daily operation. Enjoy reliable nationwide delivery straight to your professional catering establishment.
Key Features
- Hydraulic rinse aid pump - Fitted as standard for effective rinsing action.
- Peristaltic detergent pump - Ensures precise dosing for every wash cycle.
- Top quality pass through machine - Utilises a powerful wash pump for heavy-duty commercial demands.
- Staggered wash arms - The top wash arm starts first to pin down breakable or light items before the lower wash arm completes the action.
- Choice of wash cycles - Adaptable settings depending on the degree of soiling on your plates.
- Automatic hood operation - Simply lowering the hood automatically starts the washing and rinsing sequence.
- Made in Italy - Expertly manufactured for professional catering business use.
- Wash tank surface filter - Keeps water cleaner throughout service hours.
Product Specifications
| Brand | Adexa |
| Model | 61BDD230 |
| SKU | 61BDD230 |
| Category | Cleaning & Hygiene |
Dimensions & Weight
| Width | 830.00 |
| Height | 1480.00 |
| Weight | 120.00 kg |
Power Supply
| Voltage | 230V/1N/50Hz |
| Power | 6750W |
Miscellaneous
| Electric supply | 230V/1N/50Hz |
| Wash pump power | 750W |
| Wash pump flow rate | 420 litres/min |
| Boiler element | 6000W |
| Tank element | 4500W |
| Total power rating | 6750W |
| Wash tank capacity | 55 litres |
| Boiler capacity | 9 litres |
| Wash temperature | +55° |
| Rinse temperature | +85° |
| Cycle time | 90/180 sec |
| Cycles/hour (up to) | 40/20 |
| Required water pressure | bar 2-4 |
| Water supply hose | 3/4” / 31 |
| Supply water | Max +50°C |
| Noise emission | < 62 dBA |
| Square basket size | 500x500 |
| Hourly output Glasses (up to) | 2000 |
| Hourly output Dishes (up to) | 720 |
| Net weight | 105kg |
| Height (inner) | 430mm |
| Basket Size | 500x500mm |
| Power (tank) | 4500W |
| Temperature (washing) | +50 °C |
| Temperature (rinsing) | +85 °C |
| Dishwashing | Detergent dispenser Yes |
| Programs | 2 |
| Volume (wash tank) | 55 litres |
| Washing cycles | 90 / 120 seconds |
| Power (rinse tank) | 6000W |
| Rinse aid dispenser | Yes |
| Rinse function | Hot water |
| Water consumption (rinsing) | 3.5 litres |
| Noise level | < 62 dBA |
| Water pressure (inlet) | 2-4 bar 45-50 °C |
| Production (plates) | 720 plates/hour |
| Production (theoretic) | 40 baskets/hour |
| Included | Hydraulic rinse aid pump and Peristaltic detergent pump |
Warranty
| Warranty | 12 mth spare parts warranty |
Ideal For
- Busy hotel kitchens in central London requiring high-volume plate washing.
- Fast-paced restaurants in Manchester needing reliable hourly glass and dish outputs.
- Pubs and bars in Birmingham looking for efficient hood-type dishwashing.
- Hospital catering facilities across Glasgow managing heavy daily sanitation demands.
Frequently Asked Questions
How many racks can this dishwasher wash per hour?
The machine has the power and efficiency to wash up to 40 racks per hour.
What is the hourly output for glasses and dishes?
It delivers an hourly output of up to 2000 glasses and up to 720 dishes.
Does it come with built-in pumps?
Yes, it is fitted with a hydraulic rinse aid pump and a peristaltic detergent pump.
What are the wash and rinse temperatures?
The wash temperature is +55° (with washing temperature listed at +50 °C) and the rinse temperature is +85°.
How do you start a wash cycle?
Starting the cycle is as easy as lowering the hood, which automatically triggers the washing and rinsing sequence.
Order the Pass through dishwasher Premium Rinse aid pump Detergent pump 230V - 61BDD230 at My Globel and equip your kitchen with professional Italian-made performance, backed by nationwide delivery.
