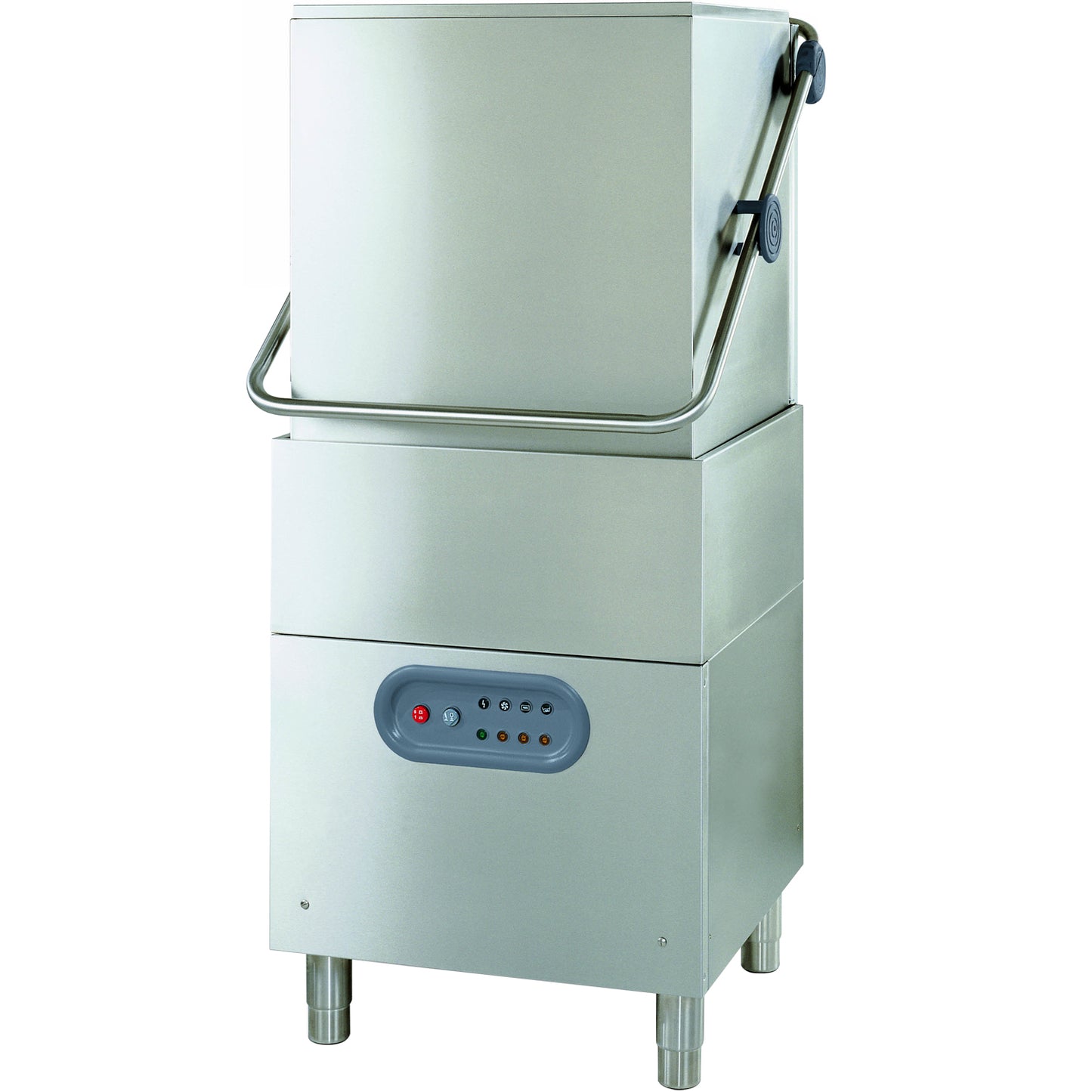

Pass through dishwasher Premium Rinse aid pump Detergent pump Drain pump 230V - 61BDDPS230
When high-volume commercial kitchens in London, Manchester, and Birmingham need reliable sanitation, My Globel supplies the Pass through dishwasher Premium Rinse aid pump Detergent pump Drain pump 230V - 61BDDPS230. Designed for demanding hospitality environments such as busy hotel canteens, bustling restaurant kitchens, and large hospital catering facilities, this heavy-duty hood type dishwasher delivers exceptional cleaning performance and rapid turnaround times.
At My Globel, we ensure you receive top-tier commercial catering equipment backed by a comprehensive 12 mth spare parts warranty. Order yours today and benefit from our efficient nationwide delivery service.
Key Features
- Hydraulic rinse aid pump - ensures streak-free results and efficient chemical dosing.
- Peristaltic detergent pump - provides precise cleaning agent delivery for consistent sanitation.

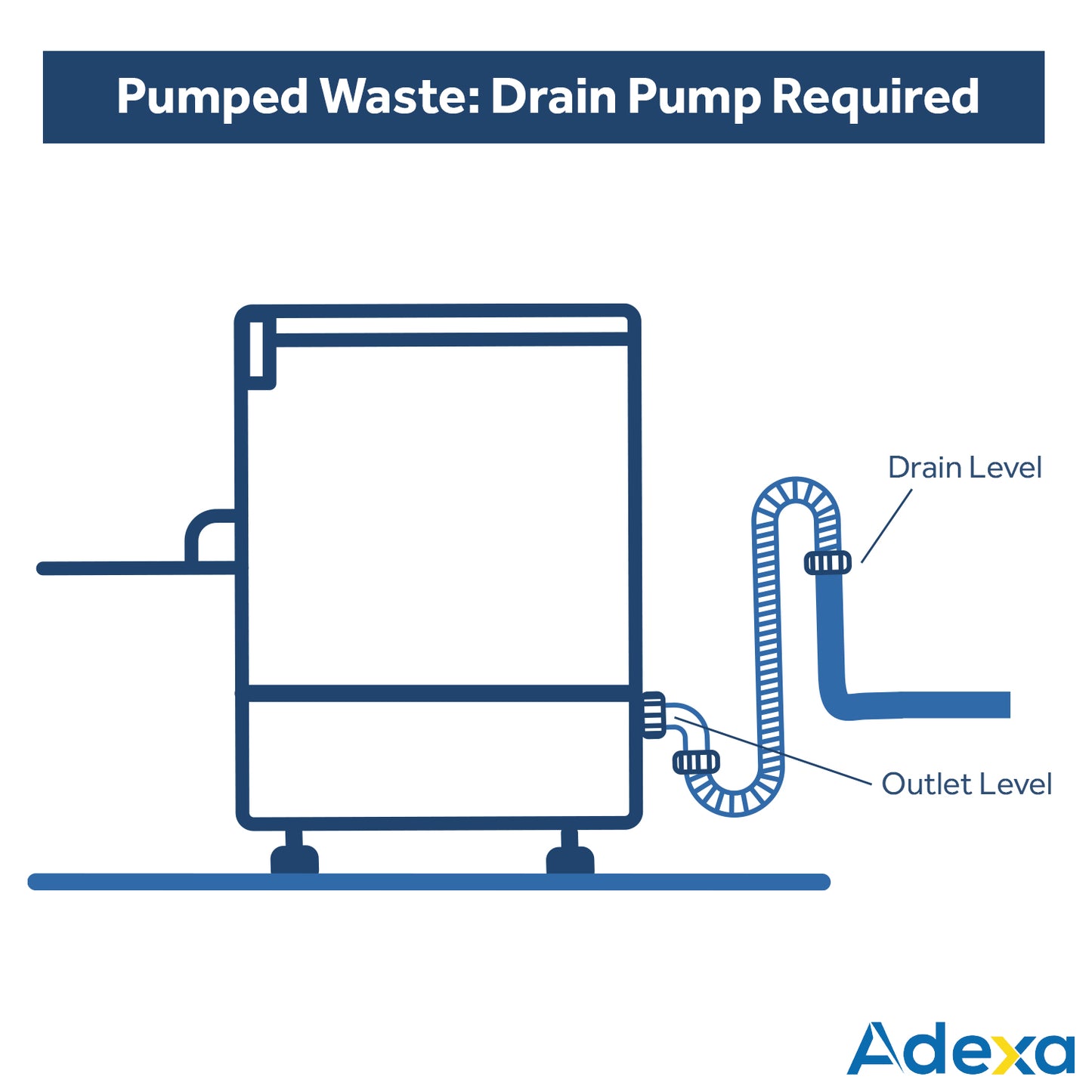

- Drain pump - allows for flexible installation, working up to 150cm.
- Powerful wash pump - delivers a 420 litres/min flow rate for superior cleaning performance.
- Staged wash action - the top wash arm pins light items down first, followed by the lower wash arm for a thorough clean.
- Wash tank surface filter - helps maintain water quality during intensive use.
- Simplified operation - cycle starts automatically as soon as the hood is lowered.
Product Specifications
| Brand | Adexa |
| Model | 61BDDPS230 |
| SKU | 61BDDPS230 |
| Category | Cleaning & Hygiene |
Dimensions & Weight
| Width | 830.00 |
| Depth | Not provided |
| Height | 1480.00 |
| Weight | 120.00 kg |
Power Supply
| Voltage | 230V/1N/50Hz |
| Power | 6750W |
Miscellaneous
| Electric supply | 230V/1N/50Hz |
| Wash pump power | 750W |
| Wash pump flow rate | 420 litres/min |
| Boiler element | 6000W |
| Tank element | 4500W |
| Total power rating | 6750W |
| Wash tank capacity | 55 litres |
| Boiler capacity | 9 litres |
| Wash temperature | +55° |
| Rinse temperature | +85° |
| Cycle time | 90/180 sec |
| Cycles/hour | up to 40/20 |
| Required water pressure | 2-4 bar |
| Water supply hose | 3/4” / 31 |
| Supply water temperature | Max +50°C |
| Square basket size | 500x500 |
| Hourly output Glasses | up to 2000 |
| Hourly output Dishes | up to 720 |
| Net weight | 105kg |
| Height (inner) | 430mm |
| Basket Size | 500x500mm |
| Power (tank) | 4500W |
| Temperature | 45-50 °C |
| Temperature (washing) | +50 °C |
| Temperature (rinsing) | +85 °C |
| Dishwashing Detergent dispenser | Yes |
| Programs | 2 |
| Volume (wash tank) | 55 litres |
| Washing cycles | 90 / 120 seconds |
| Rinsing Drain pump | Yes |
| Power (rinse tank) | 6000W |
| Rinse aid dispenser | Yes |
| Rinse function | Hot water |
| Water consumption (rinsing) | 3.5 litres |
| Noise level | < 62 dBA |
| Water pressure (inlet) | 2-4 bar |
| Production (plates) | 720 plates/hour |
| Production (theoretic) | 40 baskets/hour |
| Included | Hydraulic rinse aid pump and Peristaltic detergent pump and Drain pump (up to 150cm) |
Warranty
| Warranty | 12 mth spare parts warranty |
Ideal For
- Hotels in London requiring high-capacity dishwashing solutions
- Busy restaurant kitchens in Manchester managing high plate turnover
- Pubs and bars in Edinburgh needing to clean up to 2000 glasses per hour
- Hospitals in Leeds maintaining strict hygiene standards
- Professional catering operations across Bristol demanding fast cycle times
- High-volume canteens and cafeterias in Glasgow
Frequently Asked Questions
What is the hourly output for dishes and glasses?
The dishwasher can produce up to 720 dishes per hour (or up to 40 baskets/hour) and up to 2000 glasses per hour.
Does this machine come with built-in pumps?
Yes, it includes a hydraulic rinse aid pump, a peristaltic detergent pump, and a drain pump capable of working up to 150cm.
What are the electrical requirements?
The machine operates on an electric supply of 230V/1N/50Hz with a total power rating of 6750W.
How long is the wash cycle?
The wash cycles run at 90/180 seconds (or 90 / 120 seconds depending on the selected program).
Order the Pass through dishwasher Premium Rinse aid pump Detergent pump Drain pump 230V - 61BDDPS230 at My Globel today for dependable commercial catering equipment backed by nationwide delivery.
