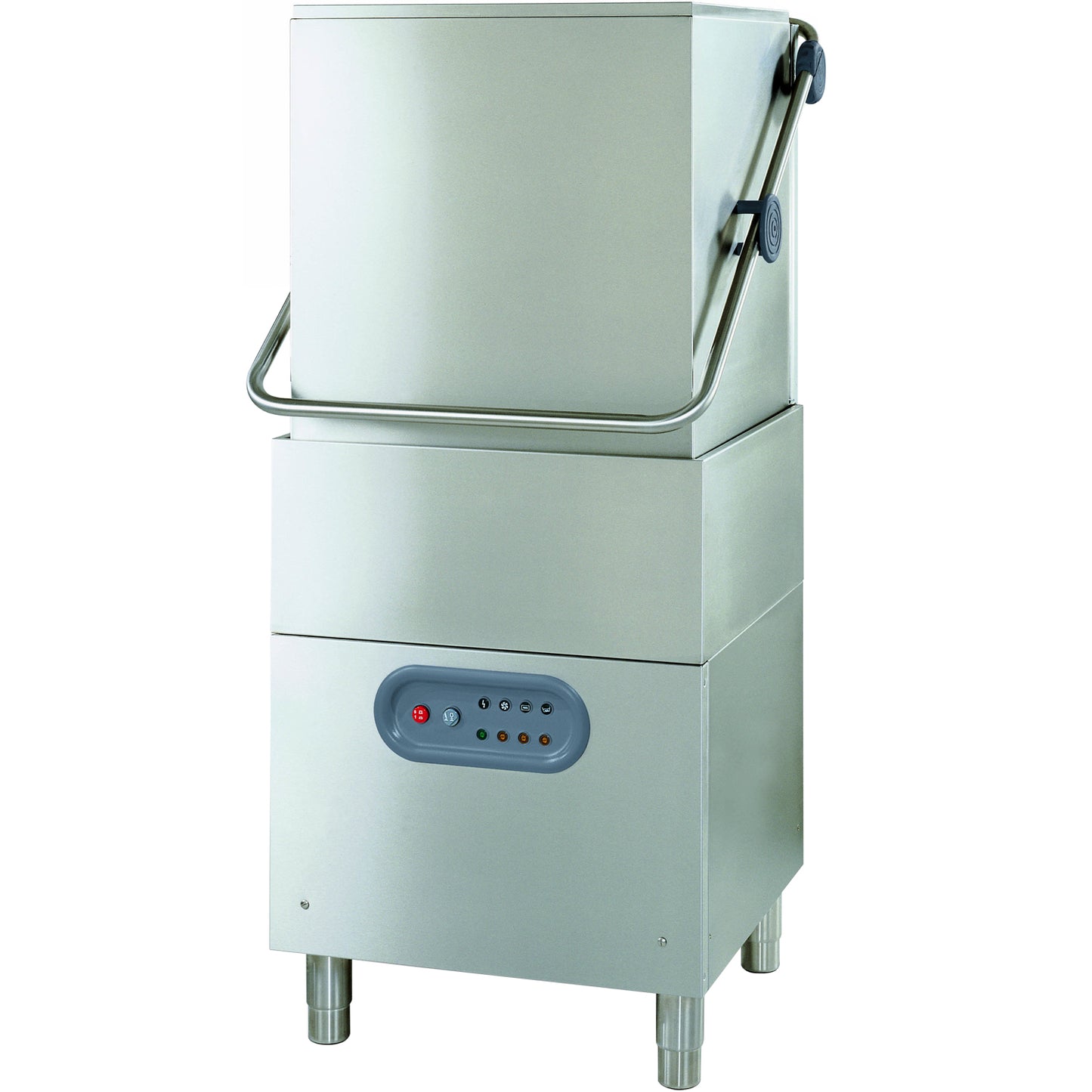

Pass through dishwasher Premium Rinse aid pump Detergent pump Drain pump 400V - 61BDDPS400
Upgrade your professional kitchen workflow with the Pass through dishwasher Premium Rinse aid pump Detergent pump Drain pump 400V - 61BDDPS400, available now through My Globel. Engineered for high-volume hospitality environments across bustling UK hubs such as London, Manchester, and Birmingham, this robust hood-type dishwasher is tailored to meet the rigorous demands of busy restaurants, hotels, and large-scale canteens.
When you choose My Globel for your commercial catering setup, you gain access to dependable heavy-duty equipment backed by a 12 mth spare parts warranty. We ensure a seamless purchasing experience, closing every transaction with our reliable nationwide delivery straight to your kitchen doors.
Key Features
- Powerful Wash Pump - ensures intensive cleaning action using a 750W motor and a 420 litres/min flow rate.
- Sequential Wash Arms - the top wash arm starts first to secure light items, followed by the lower arm to complete the cleaning.
- Automatic Cycle Start - simply lowering the hood initiates the washing and rinsing sequence for improved workflow speed.
- Integrated Pumps - includes a hydraulic rinse aid pump, a peristaltic detergent pump, and a drain pump effective up to 150cm.
- Variable Wash Cycles - provides a choice of cycles to suit the degree of soiling, with times ranging from 90 to 180 seconds.
- Wash Tank Surface Filter - keeps wash water cleaner for longer during high-intensity shifts.
Product Specifications
| Brand | Adexa |
| Model | 61BDDPS400 |
| SKU | 61BDDPS400 |
| Category | Cleaning & Hygiene |
Dimensions & Weight
| Width | 830.00 |
| Depth | Not provided |
| Height | 1480.00 |
| Weight | 120.00 kg |
Power Supply
| Voltage | 400V/3N/50Hz |
| Power | 6750W |
Miscellaneous
| Electric supply | 400V/3N/50Hz |
| Total power rating | 6750W |
| Wash pump power | 750W |
| Wash pump flow rate | 420 litres/min |
| Boiler element | 6000W |
| Tank element | 4500W |
| Wash tank capacity | 55 litres |
| Boiler capacity | 9 litres |
| Wash temperature | +55° |
| Rinse temperature | +85° |
| Cycle time | 90/180 sec |
| Cycles/hour | up to 40/20 |
| Water pressure | 2-4 bar |
| Water supply hose | 3/4” / 31 |
| Supply water | Max +50°C |
| Square basket size | 500x500 |
| Hourly output Glasses | up to 2000 |
| Hourly output Dishes | up to 720 |
| Net weight | 105kg |
| Height (inner) | 430mm |
| Basket Size | 500x500mm |
| Power (tank) | 4500W |
| Temperature (washing) | +50 °C |
| Temperature (rinsing) | +85 °C |
| Dishwashing Detergent dispenser | Yes |
| Programs | 2 |
| Volume (wash tank) | 55 litres |
| Washing cycles | 90 / 120 seconds |
| Drain pump | Yes |
| Power (rinse tank) | 6000W |
| Rinse aid dispenser | Yes |
| Rinse function | Hot water |
| Water consumption (rinsing) | 3.5 litres |
| Noise level | < 62 dBA |
| Water pressure (inlet) | 2-4 bar |
| Production (plates) | 720 plates/hour |
| Production (theoretic) | 40 baskets/hour |
| Included | Hydraulic rinse aid pump and Peristaltic detergent pump and Drain pump (up to 150cm) |
Warranty
| Warranty | 12 mth spare parts warranty |
Ideal For
- Fast-paced restaurant service in central London
- Large-scale hotel banquet dishwashing in Manchester
- High-volume hospital catering facilities in Birmingham
- Pub and bar glassware and crockery sanitation in Leeds
- Professional canteen food preparation areas in Glasgow
Frequently Asked Questions
What is the hourly output for dishes and glasses?
The dishwasher can achieve an hourly output of up to 720 dishes and up to 2000 glasses, processing up to 40 baskets per hour.
Does this unit come with built-in pumps and dispensers?
Yes, it includes a hydraulic rinse aid pump, a peristaltic detergent pump, and an integrated drain pump effective up to 150cm.
What electrical supply does this pass through dishwasher require?
It requires a 400V/3N/50Hz electric supply with a total power rating of 6750W.
What are the wash and rinse temperatures?
The wash temperature operates at +55° (with tank temperature noted at +50°C), while the rinse temperature reaches +85°.
Order the Pass through dishwasher Premium Rinse aid pump Detergent pump Drain pump 400V - 61BDDPS400 at My Globel today for top-tier commercial kitchen performance backed by nationwide delivery.
